CF Vacuum Bakeable All-Metal Angle Valves Manual for Vacuum System Wholesales

group name: Vacuum Angle valves

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

model: RUIJIA VACUUM

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Mon, 11 Nov 2024 09:44:14 GMT

contact supplier

Paramtents

Size AVBAK-CR16,AVBAK-CR35,AVBAK-CR63.
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard CF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure

Packging & Delivery

Min Order1 piece

Briefing

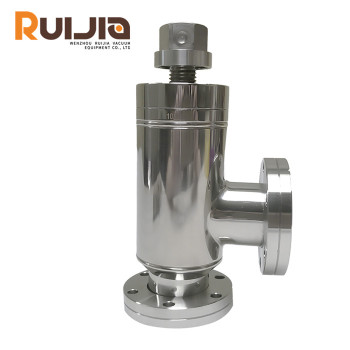

CF Vacuum Angle Valves, T type vacuum valves, CF16 CF35 CF63, SS304 SS316L CF Bakeabe all-metal, maintain stable performance under extreme conditions, ensuring the vacuum requirements of the system.

Detailed

CF Vacuum Bakeable All-Metal Angle Valves Manual for Vacuum System Wholesales Feature

●Application:Applied in fields that require ultra-high vacuum environments, such as scientific research, vacuum equipment in industrial production, semiconductor manufacturing, and vacuum coating technology.

●Size:The specific size information includes the interface size and overall size of the valve

●Testing:Detect sealing performance, high temperature resistance, and stability in vacuum environment

CF Vacuum Bakeable All-Metal Angle Valves Manual for Vacuum System Wholesales Specifications

Product Name	CF Vacuum Bakeable All-Metal Angle Valves Manual for Vacuum System Wholesales
Brand	RUIJIA
Size	AVBAK-CR16,AVBAK-CR35,AVBAK-CR63.
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	CF Standard
Temperature	-200~800°C
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Vacuum Valve types	Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve, Vacuum Manual /Pneumatic /Electric Neutral Plate Valve

Product parameters

CF Vacuum Bakeable All-Metal Angle Valves Manual for Vacuum System Wholesales Unit:mm

Model No.	O.D	A	B	C	D
AVBAK-CR16	19.05	38.1	122.2	133	38.1
AVBAK-CR35	38.1	62.5	169	188	54
AVBAK-CR63	63.5	105	266	294	76.2

Special Sizes Available Upon Request.
