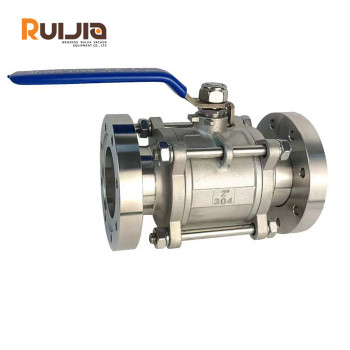

CF Vacuum 2 Way Ball Valves Stainless Steel 304 for Vacuum System Wholesales

group name: Vacuum Ball Valves

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Mon, 11 Nov 2024 10:06:40 GMT

contact supplier

Paramtents

Size CF16,CF25,CF40,CF50,CF63,CF80,CF100.
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard CF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure

Packging & Delivery

Min Order1 piece

Briefing

Vacuum Ball valves are used to connect or cut off the flow of media in vacuum system pipelines,Vacuum Ball valves are also widely used in pipelines in industries such as petroleum, chemical, metallurgical, power, and water treatment.

Detailed

CF Vacuum 2 Way Ball Valves Stainless Steel 304 for Vacuum System Wholesales Feature

●Application: Vacuum ball valves are used to control the flow of media, ensuring the vacuum degree and work efficiency of the system.

●Size:the size and specifications of ball valves include nominal diameter (DN), external dimensions, flange standards, gas source pressure, applicable range, leakage rate, etc.

●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions

CF Vacuum 2 Way Ball Valves Stainless Steel 304 for Vacuum System Wholesales Specifications

Product Name	CF Vacuum 2 Way Ball Valves Stainless Steel 304 for Vacuum System Wholesales
Brand	RUIJIA
Size	CF16,CF25,CF40,CF50,CF63,CF80,CF100.
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	CF Standard
Temperature	-200~800°C
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Vacuum Valve types	Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve, Vacuum Manual /Pneumatic /Electric Neutral Plate Valve

Product parameters

CF Vacuum 2 Way Ball Valves Stainless Steel 304 for Vacuum System Wholesales Unit:mm

Flange Size	Material	Tube Size	A/inch	B/inch
CF16	SS304	3/4''	1.77''	4.69''
CF25	SS304	1''	2.09''	4.88''
CF40	SS304	1 1/2''	2.72''	5.63''
CF50	SS304	2''	3.07''	6.38''
CF63	SS304	2 1/2''	3.86''	7.76''
CF80	SS304	3''	4.17''	9.02''
CF100	SS304	4''	5.31''	9.57''

Special Sizes Available Upon Request.
