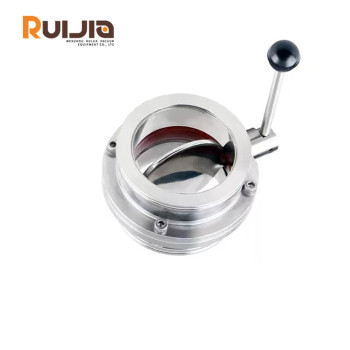

Stainless Steel Vacuum Manual Butterfly Valves ISO-Type for Vacuum System Application

group name: Vacuum Butterfly Valves

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Mon, 11 Nov 2024 12:54:57 GMT

contact supplier

Paramtents

Size ISI63,ISO80,ISO100
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard ISO Standard
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

Vacuum butterfly valve ISO Type as a device for separating and merging or switching the flow direction of the medium,Can provide many sizes according to KF standards to meet practical application scenarios.

Detailed

Stainless Steel Vacuum Manual Butterfly Valves ISO-Type for Vacuum System Application Feature

●Application:Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.

●Size:Depending on specific application requirements and design specifications

●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions

Stainless Steel Vacuum Manual Butterfly Valves ISO-Type for Vacuum System Application Specifications

Product Name	Stainless Steel Vacuum Manual Butterfly Valves ISO-Type for Vacuum System Application
Brand	RUIJIA
Size	ISI63,ISO80,ISO100
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Vacuum Valve types	Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve

Product parameters

Stainless Steel Vacuum Manual Butterfly Valves ISO-Type for Vacuum System Application Unit:mm

Model No.	Size	Connector	A	B	C	D	E
ISO63BFV	2.5''	ISO63	93.2	96.6	191.6	112	152.3
ISO80BFV	3.0''	ISO80	95.2	103.8	192.6	125	166.3
ISO100BFV	4.0''	ISO100	101.2	120.6	195 3/5	157	200

Special Sizes Available Upon Request.

Production Center

Application
