ISO Vacuum Ball Valves 2 Way manul SS304/316L ISO63-ISO100
- group name
- Vacuum Ball Valves
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Wed, 20 Nov 2024 20:19:33 GMT
Paramtents
Size ISI63,ISO80,ISO100
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard ISO Standard
Temperature -200~800℃
Packging & Delivery
-
Min Order1 piece
Briefing
ISO Vacuum ball valves 2way
valves material:stainless steel 304/316L
seal material:Viton,Silicone,Buna-N seal
Working Pressure:Vacuum~atmosphere pressure.
valves material:stainless steel 304/316L
seal material:Viton,Silicone,Buna-N seal
Working Pressure:Vacuum~atmosphere pressure.
Detailed

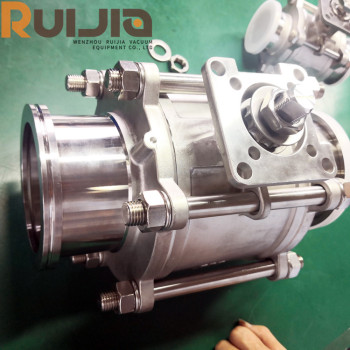

ISO Vacuum Ball Valve 2 Way Manual Type
●Application:Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.
●Size:ISO63,ISO80, ISO100
●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
ISO Vacuum Ball Valve 2 Way Manual Type Specification
|
Product Name
|
ISO Vacuum Ball Valve 2 Way Manual Type |
||
Brand | RUIJIA VACUUM | ||
Size | ISI63,ISO80,ISO100 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO Standard | ||
Temperature | -200~800degree | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
ISO Vacuum Ball Valves 2 Way Manual Type Unit:mm
| Size | Material | A/mm | B/mm | C/mm | D/mm | E/mm | F/mm |
| ISO63 (2 1/2'') | SS304 | 14.567" | 3.800'' | 7.800'' | 0.669'' | F07 | F10 |
| ISO80 (3"') | SS304 | 14.567'' | 4.200'' | 9.000'' | 0.669'' | F10 | F12 |
| ISO100 (4'') | SS304 | 15.748'' | 5.300'' | 9.500'' | 0.866'' | F10 | F12 |
Special Sizes Available Upon Request.
