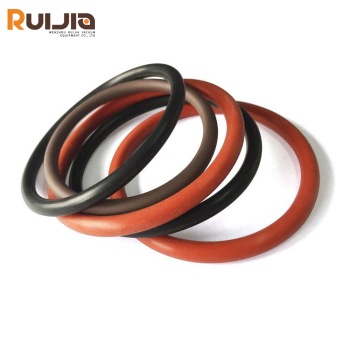

KF O'ring with the material of Viton,NBR ,Silicone used in High Vacuum System

group name: Replacment O-rings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 04 Mar 2025 14:19:21 GMT

contact supplier

Paramtents

Size KF10-KF50
Material Silicone, Viton, NBR

Packging & Delivery

Min Order1 piece

Briefing

O'ring with Centering ring & Outering ring are used together to seal between pipes, they are widely used in high vacuum systems.

Detailed

KF O'ring with the material of Viton,NBR ,Silicone Feature

● Viton O'ring are normaly used in vacuum service in place of NBR and silicone rubber.

Viton has a low porosity to most gases (except helium)and withstands high temperature (up to 200°C)

● NBR O'ring are low cost,but their maximum operating temperature(approx.100°C)makes them unacceptable for many vacuum applications.

● Silicone O'ring can withstand temperatures of 250°C for short periods, but silicone tends to harden to prolonged high temperature service, sticking to the metal surface and making the O'ring difficult to replaced.Silicone is also very porous to helium.

KF O'ring with the material of Viton,NBR ,Silicone Specifications

Material	Hardness Range	Temperature Range	Main Properties
Silicone Rubber	50-90 degrees	-100°C to 300°C	Resistant to high temperatures, resistant to low temperatures, good electrical insulation, strong chemical inertia
NBR	60-90 degrees	-35°C to 120°C	Oil-resistant, wear-resistant, and oxidation-resistant, it is not suitable for acidic, alkaline, and high-temperature environments.
Viton	55-85 degrees	-20°C to 230°C	Resistant to high temperatures, oil, high vacuum, acids and alkalis, and various chemicals

* Color can be customized upon customer’s requirements and the Material of Viton,NBR, Silicone can be choose from.

Size Parameters of O’Ring

Model No.	Match Center ring Size	Material C/R	Material O'ring	O'ring Size
KF10CRVS	KF10	304.S.S	Viton	AS-311
KF16CRVS	KF16	304.S.S	Viton	AS-314
KF25CRVS	KF25	304.S.S	Viton	AS-320
KF40CRVS	KF40	304.S.S	Viton	AS-326
KF50CRVS	NW50	304.S.S	Viton	AS-330
KF10CRVA	KF10	AL	Viton	AS-311
KF16CRVA	KF16	AL	Viton	AS-314
KF25CRVA	KF25	AL	Viton	AS-320
KF40CRVA	KF40	AL	Viton	AS-326
KF50CRVA	NW50	AL	Viton	AS-330
KF10CRNS	KF10	304.S.S	NBR	AS-311
KF16CRNS	KF16	304.S.S	NBR	AS-314
KF25CRNS	KF25	304.S.S	NBR	AS-320
KF40CRNS	KF40	304.S.S	NBR	AS-326
KF50CRNS	NW50	304.S.S	NBR	AS-330
KF10CRNA	KF10	AL	NBR	AS-311
KF16CRNA	KF16	AL	NBR	AS-314
KF25CRNS	KF25	AL	NBR	AS-320
KF40CRNA	KF40	AL	NBR	AS-326
KF50CRNA	NW50	AL	NBR	AS-330

* Special Sizes Available Upon Request.
