SS304/SS316L CF16 Vacuum edge weld bellows for vacuum system

group name: CF Vacuum Bellows

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Mon, 03 Mar 2025 12:05:43 GMT

contact supplier

Paramtents

Bellows Type SS304/SS316L CF16 Vacuum edge weld bellows
Material SS304/SS316L
Standard CF Standard
Size Range CF16,CF40,CF63
Length 48.5mm,63mm,65mm,76mm or as customer request
Lifecycles 10000

Packging & Delivery

Min Order1 piece

Briefing

Flexible Connectivity for Highly Demanding, Ultra - Flexible Applications，Vacuum edge weld bellow，Size range：CF16-CF63.

Detailed

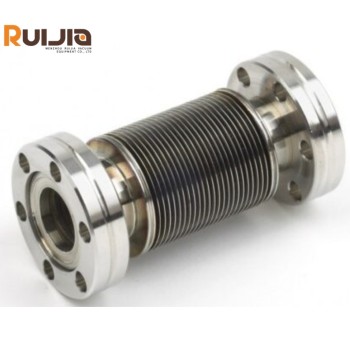

SS304/316L CF16 Vacuum edge weld bellows for vacuum scenarios Feature

●Flexible Connection

Edge welded bellows are flexible connecting parts between different vacuum flanges or end fittings. They can be easily integrated into various setups.

● High - Flexibility Applications

These bellows, known for their great flexibility, are used in many applications.

● Functions in Vacuum and Low - Pressure

In vacuum systems or when there are low differential pressures, edge welded bellows absorb movements, decouple components, allow lead - through of items, and do volume compensation.

Stainless steel 304/316L Vacuum edge weld bellows Specifications

Bellows Type	SS304/316L CF16 Vacuum edge weld bellows for vacuum scenarios
Material	SS304/SS316L
Standard	CF Flange connection
Size Range	CF16,CF40,CF63
Length	48.5mm,63mm,65mm,76mm or as customer request
Spring rate axial	5.3N/mm
Working Pressure	Vacuum~atmosphere pressure
Lifecycles	10000

Product parameters

SS304/316L CF16 Vacuum edge weld bellows Unit:mm


Size	AD	D1	D2	LC	LF	LE	HUB
EWB16R-20	34	31.5	16	48.5	58.5	68.5	20
EWB40R-10	70	59	39	63	68	73	10
EWB40R-20	70	59	39	65	75	85	20
EWB63R-20	114.3	90	65	76	86	96	20

Special Sizes Available Upon Request.
