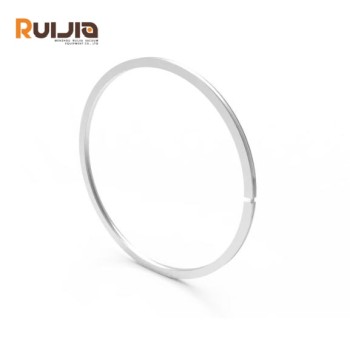

Aluminium ISO63/ISO100 vacuum outer ring for center ring in vacuum system

group name: ISO-K Centering Rings

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Tue, 04 Mar 2025 10:01:55 GMT

contact supplier

Paramtents

Product Name ISO Vacuum outer ring
Standard ISO Standard
Seal material Aluminium
Helium Leak Test 1×10 -9 Pa・m³/sec or less

Packging & Delivery

Min Order1 piece

Briefing

Aluminium,vacuum outer ring, ISO, Outer rings find applicability in a diverse range of vacuum mechanical systems

Detailed

Aluminium ISO63 Vacuum Outer Ring feature

Advantage

● The ISO Vacuum outer Ring is a key component in precision engineering. It is especially vital in applications that demand extremely high accuracy and tight tolerances.

● Such applications include semiconductor manufacturing, optics assembly, and any high - precision part - handling processes that rely on vacuum control.

● Typically, it is crafted from materials capable of withstanding vacuum conditions without outgassing. Common materials are stainless steel 304/316, as well as aluminium alloys EN1.4301 and EN1.4404.

● The outer ring is designed to ensure airtight seals within a vacuum environment. This is crucial as it prevents leaks that could otherwise undermine the integrity of the vacuum chamber.

Aluminium ISO63 Vacuum Outer Ring specifications

Product Name	Aluminium ISO63 Vacuum Outer Ring
Size	ISO63-ISO250
Material	Aluminium
tempereture	-200~800℃
working pressure	Vacuum~atmosphere pressure

Aluminium ISO63 Vacuum Outer Ring parametric

Size	ISO63	ISO100	ISO160	ISO200	ISO250
AD(Outer diamater)	94mm	128mm	179mm	239mm	287mm
L1(Length)	3.9mm	3.9mm	3.9mm	3.9mm	3.9mm

Production Center

Packing & Shipping

Application
