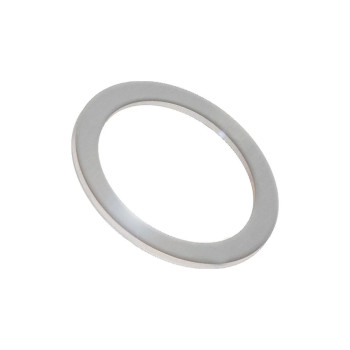

silver plated copper gasket for CF flange CF63

group name: CF Vacuum Flanges

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Thu, 27 Mar 2025 12:00:30 GMT

contact supplier

Paramtents

Product Name Silver plated copper gasket
Size CF16-CF400
Function Used for CF Flange

Packging & Delivery

Min Order1 piece

Briefing

This type of gasket is based on copper with a layer of silver plating on its surface. Copper has good electrical and thermal conductivity and flexibility, providing the gasket with basic physical and sealing properties

Detailed

Silver plated copper gasket used for CF flange Feature

●This type of gasket is based on copper with a layer of silver plating on its surface. Copper has good electrical and thermal conductivity and flexibility, providing the gasket with basic physical and sealing properties;

●When the CF flange is properly assembled, the knife - edge presses firmly onto the flat gasket. This action forces the sealing material to spread outward towards the flange.

●The gasket is fully enclosed, ensuring that it won't protrude from the edges, even when subjected to extremely high bake - out temperatures.

●The CF flange is available in two versions: rotatable and non - rotatable. It comes with either through - holes or tapped bolt holes to meet different application requirements.

Silver Plated Copper Gasket Used For CF Flange Specifications

Product Name	Silver plated copper gasket
Brand	RUIJIA
Size	CF16-CF400
Packing	sealed plastic bag with a protective plastic cap.
Types	Copper gasket,silver plated copper gasket

Product parameters

Silver Plated Copper Gasket Used For CF Flange Unit:mm

Part#	Flange Size	A	B	Thickness(C)
CF16CS	CF16	21	16	2
CF35CS	CF35	48	37	2
CF63CS	CF63	82	63	2
CF100CS	CF100	120	101	2
CF150CS	CF150	171	152	2
CF200CS	CF200	222	203	2
CF250CS	CF250	272.7	254	2
CF275CS	CF275	294	269	2
CF350CS	CF350	376.7	356.50	2
CF400CS	CF400	401.3	419.10	2

Special Sizes Available Upon Request.
