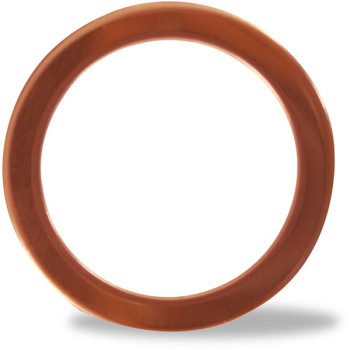

CF copper gasket for CF flange CF16-CF400

group name: CF Vacuum Flanges

Min Order: 1 piece

brand name: RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER

Nearest port for product export: Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union

update time: Thu, 27 Mar 2025 11:59:10 GMT

contact supplier

Paramtents

Product Name CF copper gasket
Size CF16-CF400
Function Used for CF Flange

Packging & Delivery

Min Order1 piece

Briefing

Copper exhibits excellent electrical and thermal conductivity, along with remarkable flexibility. These inherent properties endow copper gaskets with fundamental physical capabilities and robust sealing performance.

Detailed

CF copper gasket used for CF flange Feature

●Copper exhibits excellent electrical and thermal conductivity along with remarkable flexibility. These inherent properties endow copper gaskets with fundamental physical capabilities and robust sealing performance.

●When the CF flange is properly assembled, the knife - edge presses firmly onto the flat gasket. This action forces the sealing material to spread outward towards the flange.

●The gasket is fully enclosed, ensuring that it won't protrude from the edges, even when subjected to extremely high bake - out temperatures.

●The CF flange is available in two versions: rotatable and non - rotatable. It comes with either through - holes or tapped bolt holes to meet different application requirements.

CF Copper Gasket Used For CF Flange Specifications

Product Name	CF copper gasket
Brand	RUIJIA
Size	CF16-CF400
Packing	sealed plastic bag with a protective plastic cap.
Types	Copper gasket,silver plated copper gasket

Product parameters

CF Copper Gasket Used For CF Flange Unit:mm

Part#	Flange Size	A	B	Thickness(C)
CF16CS	CF16	21	16	2
CF35CS	CF35	48	37	2
CF63CS	CF63	82	63	2
CF100CS	CF100	120	101	2
CF150CS	CF150	171	152	2
CF200CS	CF200	222	203	2
CF250CS	CF250	272.7	254	2
CF275CS	CF275	294	269	2
CF350CS	CF350	376.7	356.50	2
CF400CS	CF400	401.3	419.10	2

Special Sizes Available Upon Request.
