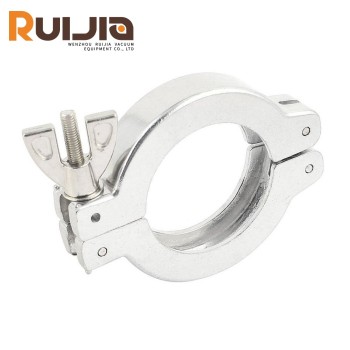

KF Vacuum Clamps Double Pin Aluminium
- group name
- KF Vacuum Clamps
- Min Order
- 1 piece
- brand name
- RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
- Nearest port for product export
- Ningbo Port, Shanghai Port, Shenzhen Port, Tianjin Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union
- update time
- Wed, 13 Aug 2025 10:29:28 GMT
Paramtents
Size KF10,KF25,KF40,KF50.
Material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Packging & Delivery
-
Min Order1 piece
Briefing
KF clamps double pin,Aluminium clamps,resist corrosion,making them ideal for outdoor applications or those exposed to moisture or chemicals.
Detailed
KF Vacuum Clamps Double Pin Aluminium feature
●Material characteristics: light weight, corrosion resistance.
●Sealing performance: rubber ring seal, good adaptability
●Connection and installation: quick loading and unloading, low installation accuracy requirement.
●Mechanical properties: high strength, good vibration resistance.
●Scope of application: wide temperature range, a variety of field applications
KF Vacuum Clamps Double Pin Aluminium specifications
|
Product Name
|
KF Vacuum Clamps Double Pin Aluminium
|
||
Brand | RUIJIA | ||
Size | KF10,KF25,KF40,KF50. | ||
Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
KF Vacuum clamp types
|
KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)
|
||
Product parameters
KF Vacuum Clamps Double Pin Aluminium Unit:mm
| Model No | Material | A | B | C |
| KF16 | AL | 42 | 62 | 16.5 |
| KF25 | AL | 53.5 | 72 | 16.5 |
| KF40 | AL | 69 | 89.5 | 16.5 |
| KF50 | AL | 90 | 113 | 20 |
Special Sizes Available Upon Request.
